Salon


Products

Our products and services.


ONE PRODUCT TO FIT ALL YOUR APPLICATIONS:
GEN5B3
CONTROLLER

Energy supply
+ 110V AC and 230V AC US/EU/ASEAN
Input
+ 6x 10Bit analog sensors
+ 13x digital sensors/endswitches
+ Inputpanel: Up to 10 switches, 12 LEDs
+ Input emergency shutdown panel
Periphery
+ Supports all kind of sensors:
   Sick, Pepper&Fuchs, Bauer etc.
+ Full graphic touchdisplay up to 7"
+ Full SPS remote control
Output
+ 4x engine controls. Support of:
   DC / ASYNC / PWM / FU / STEP
+ Industrial lighttower: Green/Yellow/Red
+ Output acoustically buzzer feedback
+ Output live output for presentation
Certified
+ Fully CE certified
+ ISO automotive certified
Maintenance and safety
+ Servicepanel ready
+ Brownout detection
+ Selflogic inspection
+ Easy and flexible software updates




BE FLEXIBLE, BE SMART:

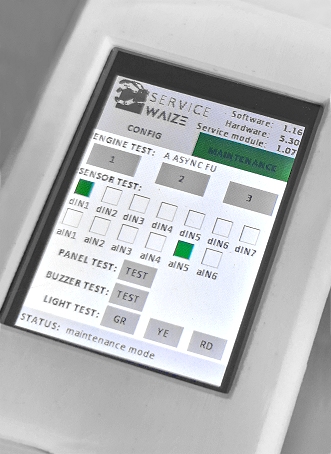

SERVICEPANEL
FOR GEN5B3


Configurate
+ Choose your engine technology.
+ Choose "REVERSE" for reversed rotation.
+ Choose the type of "SENSOR" ANALOG/DIGITAL.
+ Choose "SENSOR DETECT" for easily adding all sensors.
SERVICE CYCLE COUNTER
+ Set the cycles before "SERVICE"-LED is triggert
+ "RESET" as maintenance service.
MAINTENANCE
+ Inspect the connected engine.
+ Check and review all sensors.
+ Check all UIs buttons/LEDs.
+ Check the controllers buzzer.
+ Check the connected lighttower.

The SERVICEPANEL is FREE for all our customers.

Our Team

Who is who: Our faces behind the names.


Ingenieur
(Dipl.-Ing. M. Eng.)
Dominik C. Waize
CEO / Engineering


Mikrosystemtechniker
(M. Sc.)
Lukas Kluge
Design / Assembly

Mikrosystemtechnikerin
(B. Sc.)
Anila Ansari
Assembly

Betriebswirt
(M. Sc.)
Toni E. Schubert
Marketing / Financials

Betriebswirtin
(B. Sc.)
Adriana A. Penaria
Marketing / Accounting

Betriebswirtin
(B. Sc.)
Lena Jahnczyck
Marketing / Accounting

Betriebswirtin
(M. A.)
Melissa Peters
Marketing / Accounting

Betriebswirtin
(B. Sc.)
Isabella Hoffmann
Technischer Einkauf

Downloads

Firmware updates.


Hardware
Release
Download
  •

    GEN5 B3 universal firmware for lifting machines

    1.20       2024‑02‑14

    DOWNLOAD   [ 0.044 MB ]



    GEN5 B3 universal firmware for lifting machines

    1.19       2023‑09‑20

    DOWNLOAD   [ 0.043 MB ]



    GEN5 B3 universal firmware for lifting machines

    1.18       2023‑04‑08

    DOWNLOAD   [ 0.036 MB ]



    GEN5 B3 universal firmware for lifting machines

    1.17       2023‑03‑14

    DOWNLOAD   [ 0.035 MB ]

  • GEN5 B3 Mini release in Q2/24

  •

    SERVICEPANEL firmware for lifting machines

    1.07       2023‑01‑28

    DOWNLOAD   [ 0.212 MB ]

  •

    Flashtool 1.41 USB Driver firmware update tool

    1.10       2023‑03‑14

    DOWNLOAD   [ 6.101 MB ]

  •

    GEN5B3 3D Model STEP/STL/Catia/SAT

    1.00       2023‑03‑15

    DOWNLOAD   [ 2.137 MB ]



    User Panel 3D Model STEP

    1.00       2024‑02‑15

    DOWNLOAD   [ 1.468 MB ]

  •

    GEN5B3 user manual for lifting machines DE/EN

    2.30       2023‑03‑15

    DOWNLOAD   [ 0.344 MB ]



    SERVICEPANEL user manual DE

    1.00       2023‑03‑16

    DOWNLOAD   [ 0.380 MB ]

References

Our partners.

A
+ ABB AG India
+ ABB AG Swiss
+ Alfatec GmbH Fördersysteme
+ Arizona Aerospace USA
B
+ Bastian Industrial Handling
+ Berliner Feuerwehr
+ Beta Control
+ Beuth Hochschule für Technik Berlin
+ Bloksma Engineering GmbH
+ BMW Group
+ Bosch GmbH
D
+ Daimler Mercedes-Benz Group AG Thailand
+ Deutsche Bahn
+ Deutsches Zentrum für Luft- und Raumfahrt
E
+ Eisenbahningenieurbüro Munder
+ Enimat Lifting Specialist
+ Exist Universität Potsdam
F
+ Fath GmbH
+ Fath Mechatronics GmbH
+ Fraunhofer Institut FHG
H
+ Harting Co. KG
+ Honeybee Robotics Spacecraft Mechanisms
K
+ Ketterer Antriebe
L
+ LPS Lean Production Shop
N
+ Northrop Grumman Sys. Corp. USA AZ
P
+ Phoenix Mecano AG
Q
+ Qundis GmbH
R
+ Rheinmetall AG
S
+ Schaeffler Group
T
+ Tesla Inc.
+ TU Technische Universität Berlin
V
+ Volkswagen AG
W
+ Wuppermann AG
Y
+ Yaskawa Motoman Robotics
and others.

News-Blog

News. Coming soon.
